Non-Residential Building Geometry

Building geometries for the non-residential DEER prototypes are sourced from NREL’s Building Component Library. The Create DEER Prototype Building Measure was used to generate building geometry files for the 22 non-residential DEER prototypes in EnergyPlus format.

The geometries remained unchanged from the initial source files. The 3D model geometry can be viewed with either the Euclid or OpenStudio extensions in Sketchup. Screenshots of the 3D geometry for each of the non-residential DEER prototypes are shown below.

Geometries for the new non-residential prototype models (i.e. Fin, Lib, Rel), which are not included in the pre-existing DEER model set, were developed in EnergyPlus format as part of the CalBEM Benchmarking Database project. Representative geometry and space functions for the new building types are derived from data in the 2012 Commercial Buildings Energy Consumption Survey (CBECS). CBECS is a national sample survey that collects information on the US commercial buildings stock, including energy-related building characteristics and energy usage data. Variables included in the survey data such as building shape, building area, glazing percentage, primary space types, floor-to-ceiling height, and roof tilt were used to produce representative geometry for the three building types. Screenshots of the 3D geometry for each of the new commercial prototypes are shown below.

Assembly (Asm)

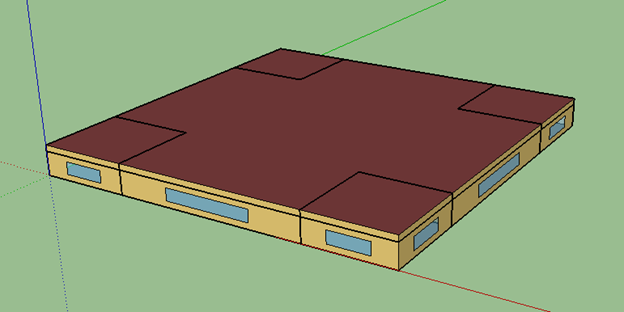

Assembly Building Geometry

Education - Community College (ECC)

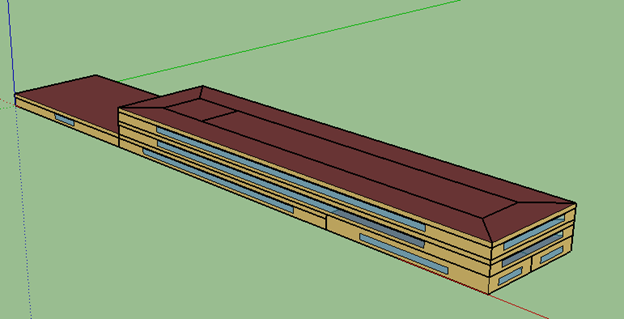

ECC - Education Community College Geometry

Education - Primary School (EPr)

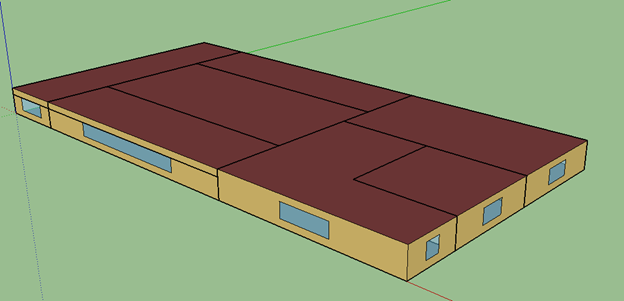

DEER EPr Model Geometry

Education - Relocatable Classroom (ERC)

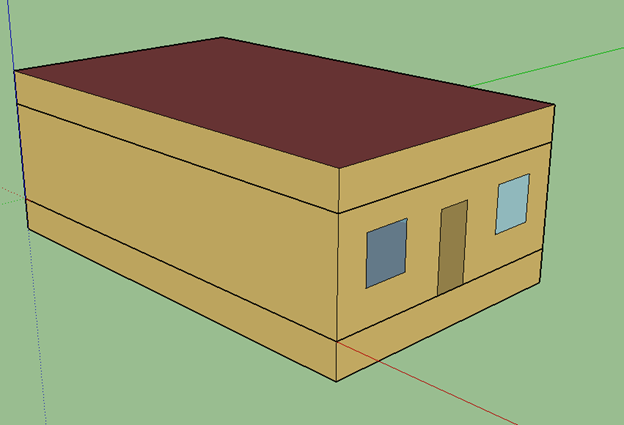

DEER ERC Model Geometry

Education - Secondary School (ESe)

DEER ESe Model Geometry

Education - University (EUn)

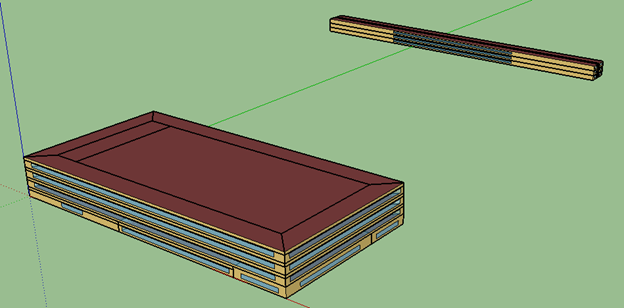

DEER EUn Model Geometry

Financial Institution (Fin)

Fin Model Geometry

Grocery (Gro)

DEER Grocery Model Geometry

Health/Medical - Hospital (Hsp)

DEER Hospital Model Geometry

Health/Medical - Nursing Home (Nrs)

DEER Nursing Home Model Geometry

Lodging - Hotel (Htl)

DEER Hotel Model Geometry

Library (Lib)

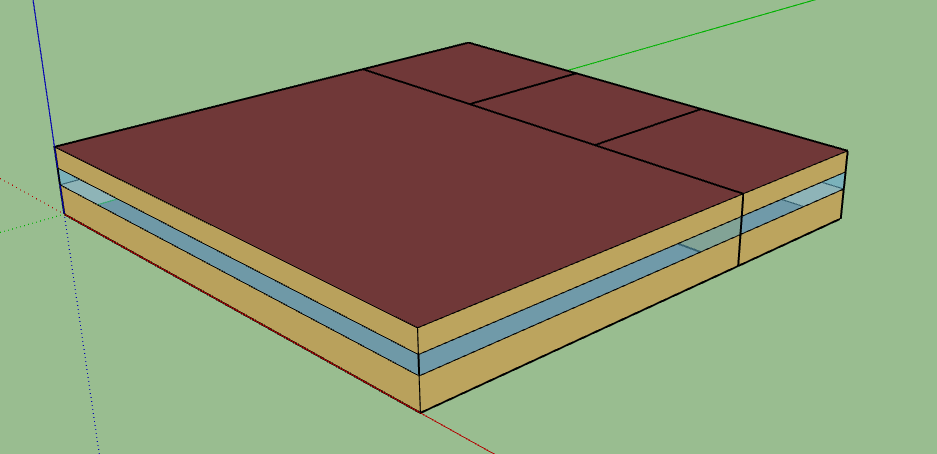

DEER Library Model Geometry

Lodging - Motel (Mtl)

DEER Motel Model Geometry

Manufacturing - Biotech (MBT)

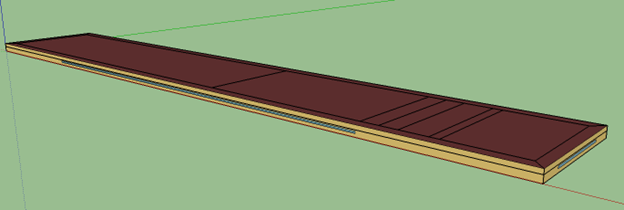

DEER Manufacturing - Biotech Model Geometry

Manufacturing - Light Industrial (MLI)

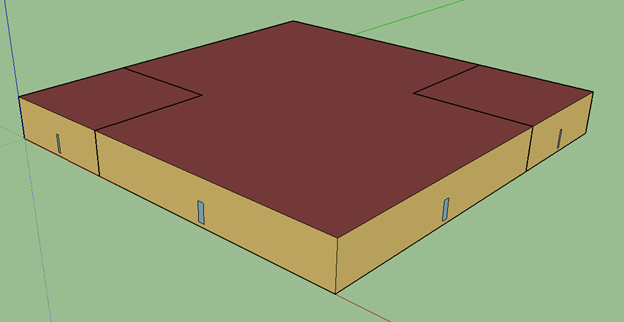

DEER Light Industrial Model Geometry

Office - Large (OfL)

DEER Office - Large Model Geometry

Office - Small (OfS)

DEER Office - Small Model Geometry

Religious Facility (Rel)

DEER Religious Facility Model Geometry

Restaurant - Fast-Food (RFF)

DEER Restaurant - Fast-Food Model Geometry

Restaurant - Sit-Down (RSD)

DEER Restaurant - Sit-Down Model Geometry

Retail - Multistory Large (Rt3)

DEER Retail Multistory Large Model Geometry

Retail - Single-Story Large (RtL)

DEER Retail Single-Story Large Model Geometry

Retail - Small (RtS)

DEER Retail Small Model Geometry

Storage - Conditioned (SCn)

DEER Storage/Conditioned Model Geometry
